Django + Bootstrap基础开发环境

本文介绍Django + Bootstrap基础环境开发环境的搭建

1、使用工具:Pycharm与Linux Centos 7操作系统

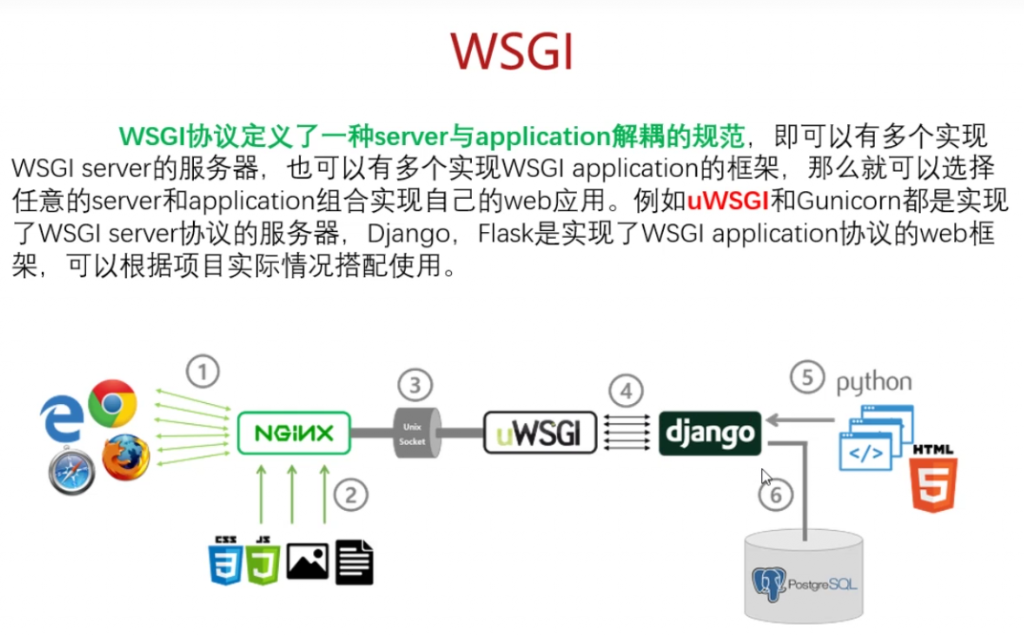

2、Django + uSWGI + Nginx环境的搭建以及Bootstrap的使用

Linux安装Django

pip3 install django

Pycharm创建New Project的 Django项目(等待时间较长)

关于venv:先选择本地venv,可以选择重新创建

创建完成:

Linux创建Django项目文件目录

[root@localhost Python-3.6.4]# mkdir -p /var/www/leondjango
[root@localhost Python-3.6.4]# cd /var/www/leondjango
[root@localhost leondjango]# ls
[root@localhost leondjango]#

Pycharm添加远程linux运行环境

Linux查看python3目录

[root@localhost leondjango]# which python3
/usr/bin/python3

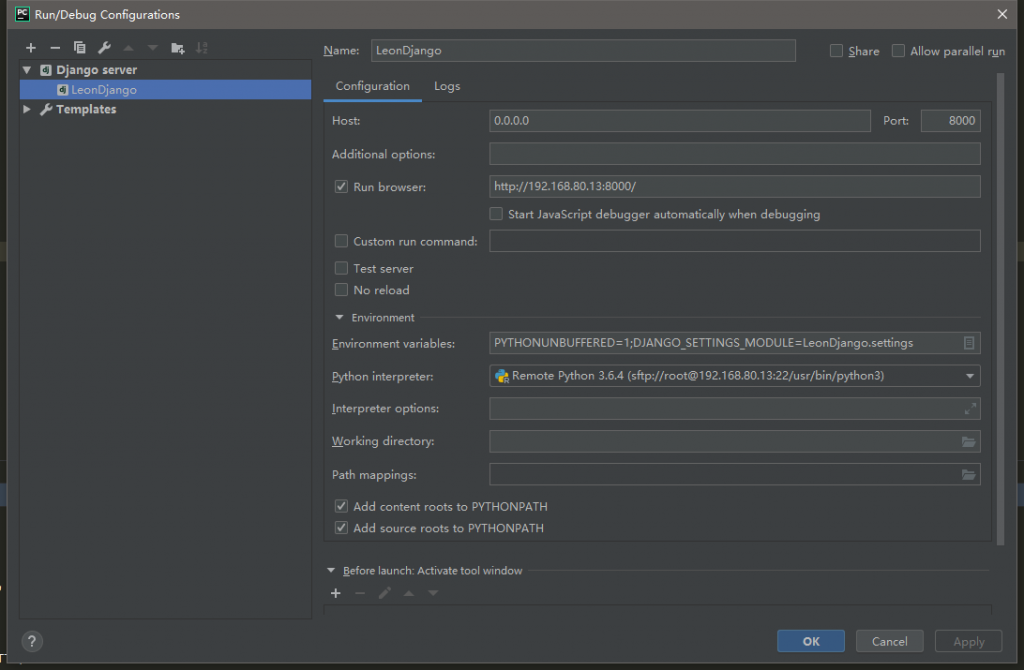

编辑project配置

设置setting.py中的ALLOWD_HOSTS

Linux运行命令:

[root@localhost leondjango]# python3 manage.py migrate

错误排查

django.core.exceptions.ImproperlyConfigured: SQLite 3.8.3 or later is required (found 3.7.17).

可以通过如下方法解决:注释掉抛出异常的语句。

查找django安装目录:

cd /find -name django

然后发现相关目录:

./usr/local/lib/python3.6/site-packages/django./usr/local/lib/python3.6/site-packages/django/forms/jinja2/django./usr/local/lib/python3.6/site-packages/django/forms/templates/django

修改sqlite的base.py:

vi /usr/local/lib/python3.6/site-packages/django/db/backends/sqlite3/base.py

注释掉抛出异常的语句:

Centos 7和 Centos 6开放查看端口防火墙关闭打开:

https://www.zccie.com/python/992/

[root@localhost leondjango]# firewall-cmd --list-ports
[root@localhost leondjango]# firewall-cmd --zone=public --add-port=8000/tcp --permanent
success
[root@localhost leondjango]# firewall-cmd --reload
success
[root@localhost leondjango]# firewall-cmd --list-ports
8000/tcp

Django运行成功:

Bootstrap与模板

templates/index.html

<!doctype html>
<html lang="en">
  <head>
    <!-- Required meta tags -->
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

    <!-- Bootstrap CSS -->
    <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css" integrity="sha384-ggOyR0iXCbMQv3Xipma34MD+dH/1fQ784/j6cY/iJTQUOhcWr7x9JvoRxT2MZw1T" crossorigin="anonymous">

    <title>leonzhang - index</title>
  </head>
  <body>
    <!-- Optional JavaScript -->
    <!-- jQuery first, then Popper.js, then Bootstrap JS -->
    <script src="https://code.jquery.com/jquery-3.3.1.slim.min.js" integrity="sha384-q8i/X+965DzO0rT7abK41JStQIAqVgRVzpbzo5smXKp4YfRvH+8abtTE1Pi6jizo" crossorigin="anonymous"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.7/umd/popper.min.js" integrity="sha384-UO2eT0CpHqdSJQ6hJty5KVphtPhzWj9WO1clHTMGa3JDZwrnQq4sF86dIHNDz0W1" crossorigin="anonymous"></script>
    <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/js/bootstrap.min.js" integrity="sha384-JjSmVgyd0p3pXB1rRibZUAYoIIy6OrQ6VrjIEaFf/nJGzIxFDsf4x0xIM+B07jRM" crossorigin="anonymous"></script>
    <nav class="navbar navbar-expand-lg navbar-light bg-light">
      <a class="navbar-brand" href="#">Navbar</a>
      <button class="navbar-toggler" type="button" data-toggle="collapse" data-target="#navbarSupportedContent" aria-controls="navbarSupportedContent" aria-expanded="false" aria-label="Toggle navigation">
        <span class="navbar-toggler-icon"></span>
      </button>

      <div class="collapse navbar-collapse" id="navbarSupportedContent">
        <ul class="navbar-nav mr-auto">
          <li class="nav-item active">
            <a class="nav-link" href="#">Home <span class="sr-only">(current)</span></a>
          </li>
          <li class="nav-item">
            <a class="nav-link" href="#">Link</a>
          </li>
          <li class="nav-item dropdown">
            <a class="nav-link dropdown-toggle" href="#" id="navbarDropdown" role="button" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
              Dropdown
            </a>
            <div class="dropdown-menu" aria-labelledby="navbarDropdown">
              <a class="dropdown-item" href="/urltest">URLTEST</a>
              <a class="dropdown-item" href="#">Action</a>
              <a class="dropdown-item" href="#">Another action</a>
              <div class="dropdown-divider"></div>
              <a class="dropdown-item" href="#">Something else here</a>
            </div>
          </li>
          <li class="nav-item">
            <a class="nav-link disabled" href="#" tabindex="-1" aria-disabled="true">Disabled</a>
          </li>
        </ul>
        <form class="form-inline my-2 my-lg-0">
          <input class="form-control mr-sm-2" type="search" placeholder="Search" aria-label="Search">
          <button class="btn btn-outline-success my-2 my-sm-0" type="submit">Search</button>
        </form>
      </div>
    </nav>
    <div class="container-fluid">
      <h2>index Test</h2>
    </div>
  </body>
</html>

templates/urltest.html

<!doctype html>
<html lang="en">
  <head>
    <!-- Required meta tags -->
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

    <!-- Bootstrap CSS -->
    <link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css" integrity="sha384-ggOyR0iXCbMQv3Xipma34MD+dH/1fQ784/j6cY/iJTQUOhcWr7x9JvoRxT2MZw1T" crossorigin="anonymous">

    <title>lenonzhang - urltest</title>
  </head>
  <body>
    <!-- Optional JavaScript -->
    <!-- jQuery first, then Popper.js, then Bootstrap JS -->
    <script src="https://code.jquery.com/jquery-3.3.1.slim.min.js" integrity="sha384-q8i/X+965DzO0rT7abK41JStQIAqVgRVzpbzo5smXKp4YfRvH+8abtTE1Pi6jizo" crossorigin="anonymous"></script>
    <script src="https://cdnjs.cloudflare.com/ajax/libs/popper.js/1.14.7/umd/popper.min.js" integrity="sha384-UO2eT0CpHqdSJQ6hJty5KVphtPhzWj9WO1clHTMGa3JDZwrnQq4sF86dIHNDz0W1" crossorigin="anonymous"></script>
    <script src="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/js/bootstrap.min.js" integrity="sha384-JjSmVgyd0p3pXB1rRibZUAYoIIy6OrQ6VrjIEaFf/nJGzIxFDsf4x0xIM+B07jRM" crossorigin="anonymous"></script>
    <nav class="navbar navbar-expand-lg navbar-light bg-light">
      <a class="navbar-brand" href="#">Navbar</a>
      <button class="navbar-toggler" type="button" data-toggle="collapse" data-target="#navbarSupportedContent" aria-controls="navbarSupportedContent" aria-expanded="false" aria-label="Toggle navigation">
        <span class="navbar-toggler-icon"></span>
      </button>

      <div class="collapse navbar-collapse" id="navbarSupportedContent">
        <ul class="navbar-nav mr-auto">
          <li class="nav-item active">
            <a class="nav-link" href="#">Home <span class="sr-only">(current)</span></a>
          </li>
          <li class="nav-item">
            <a class="nav-link" href="#">Link</a>
          </li>
          <li class="nav-item dropdown">
            <a class="nav-link dropdown-toggle" href="#" id="navbarDropdown" role="button" data-toggle="dropdown" aria-haspopup="true" aria-expanded="false">
              Dropdown
            </a>
            <div class="dropdown-menu" aria-labelledby="navbarDropdown">
              <a class="dropdown-item" href="/urltest">URLTEST</a>
              <a class="dropdown-item" href="#">Action</a>
              <a class="dropdown-item" href="#">Another action</a>
              <div class="dropdown-divider"></div>
              <a class="dropdown-item" href="#">Something else here</a>
            </div>
          </li>
          <li class="nav-item">
            <a class="nav-link disabled" href="#" tabindex="-1" aria-disabled="true">Disabled</a>
          </li>
        </ul>
        <form class="form-inline my-2 my-lg-0">
          <input class="form-control mr-sm-2" type="search" placeholder="Search" aria-label="Search">
          <button class="btn btn-outline-success my-2 my-sm-0" type="submit">Search</button>
        </form>
      </div>
    </nav>
    <div class="container-fluid">
      <h2>url Test</h2>
    </div>
  </body>
</html>

views/index.py

from django.shortcuts import render_to_response

def index(request):
	return render_to_response('index.html')

views/urltest.py

from django.shortcuts import render_to_response

def urltest(request):
return render_to_response('urltest.html')

leondjango/urls.py

from django.contrib import admin
from django.urls import path
from views import index,urltest



urlpatterns = [
path('admin/', admin.site.urls),
path('', index.index),
path('urltest/', urltest.urltest)
]

安装UWSGI

[root@localhost leondjango]# pip3 install uwsgi
[root@localhost leondjango]# find / -name uwsgi
/usr/local/python3/bin/uwsgi
[root@localhost leondjango]# ln -s /usr/local/python3/bin/uwsgi /usr/bin/uwsgi

测试:

[root@localhost leondjango]# uwsgi --http :8080 --chdir /var/www/leondjango --module leondjango.wsgi
*** Starting uWSGI 2.0.18 (64bit) on [Thu Jun  6 18:48:24 2019] ***
compiled with version: 4.8.5 20150623 (Red Hat 4.8.5-36) on 06 June 2019 08:45:26
os: Linux-3.10.0-957.el7.x86_64 #1 SMP Thu Nov 8 23:39:32 UTC 2018
nodename: localhost.localdomain
machine: x86_64
clock source: unix
pcre jit disabled
detected number of CPU cores: 2
current working directory: /var/www/leondjango
detected binary path: /usr/local/python3/bin/uwsgi
uWSGI running as root, you can use --uid/--gid/--chroot options
*** WARNING: you are running uWSGI as root !!! (use the --uid flag) ***
chdir() to /var/www/leondjango
*** WARNING: you are running uWSGI without its master process manager ***
your processes number limit is 7183
your memory page size is 4096 bytes
detected max file descriptor number: 1024
lock engine: pthread robust mutexes
thunder lock: disabled (you can enable it with --thunder-lock)
uWSGI http bound on :8080 fd 4
spawned uWSGI http 1 (pid: 81286)
uwsgi socket 0 bound to TCP address 127.0.0.1:34382 (port auto-assigned) fd 3
uWSGI running as root, you can use --uid/--gid/--chroot options
*** WARNING: you are running uWSGI as root !!! (use the --uid flag) ***
Python version: 3.6.4 (default, Jun  6 2019, 13:38:15)  [GCC 4.8.5 20150623 (Red Hat 4.8.5-36)]
*** Python threads support is disabled. You can enable it with --enable-threads ***
Python main interpreter initialized at 0x1524a20
uWSGI running as root, you can use --uid/--gid/--chroot options
*** WARNING: you are running uWSGI as root !!! (use the --uid flag) ***
your server socket listen backlog is limited to 100 connections
your mercy for graceful operations on workers is 60 seconds
mapped 72920 bytes (71 KB) for 1 cores
*** Operational MODE: single process ***
WSGI app 0 (mountpoint='') ready in 0 seconds on interpreter 0x1524a20 pid: 81285 (default app)
uWSGI running as root, you can use --uid/--gid/--chroot options
*** WARNING: you are running uWSGI as root !!! (use the --uid flag) ***
*** uWSGI is running in multiple interpreter mode ***
spawned uWSGI worker 1 (and the only) (pid: 81285, cores: 1)
[pid: 81285|app: 0|req: 1/1] 192.168.80.1 () {38 vars in 692 bytes} [Thu Jun  6 10:48:31 2019] GET / => generated 3124 bytes in 30 msecs (HTTP/1.1 200) 3 headers in 110 bytes (1 switches on core 0)
[pid: 81285|app: 0|req: 2/2] 192.168.80.1 () {38 vars in 726 bytes} [Thu Jun  6 10:48:34 2019] GET /urltest/ => generated 3125 bytes in 2 msecs (HTTP/1.1 200) 3 headers in 110 bytes (1 switches on core 0)

编写uWSGI的配置文件

[root@localhost ~]# cd /var/www/leondjango/
[root@localhost leondjango]# ls
db.sqlite3  leondjango  manage.py  __pycache__  templates  venv  views
[root@localhost leondjango]# vi uwsgi.ini
# uwsgi.ini file
[uwsgi]

# Django-related settings
socket = 127.0.0.1:8001

# the base directory (full path)
chdir = /var/www/leondjango

# Django's wsgi file
module = leondjango.wsgi

# process-related settings
# master
master = true

# maximum number of worker processes
processes = 2

# ... with appropriate permissions - may be needed
#chmod-socket = 666
#chown-socket = nginx:nginx
# clear environment on exit
vacuum = true
enable-threads = true

安装NGINX

[root@localhost leondjango]# yum install epel-release
[root@localhost leondjango]# yum -y install nginx
[root@localhost leondjango]# vi /etc/nginx/nginx.conf
删除选中的系统默认配置
upstream django {
	server 127.0.0.1:8001;
}
server {
      listen       80 default_server;
      listen       [::]:80 default_server;
      server_name  192.168.80.13;
      root         /var/www/leondjango;   #项目路径

      #load configuration files for the default server block.

      include /etc/nginx/default.d/*.conf;

      location / {
          include  uwsgi_params;
          uwsgi_pass  django;
      }
      location /static/ {    #加入静态文件路径.包括CSS文件,image文件和JS文件
          autoindex on;
          alias /var/www/static/;
      }
}

uWSGI服务

[root@localhost leondjango]# cd /etc/systemd/system
[root@localhost system]# vi leon.service
[Unit]
Description = uWSGI instance to serve leon
After=network.target

[Service]
User=nginx
Group=nginx
ExecStart=/usr/bin/bash -c 'cd /var/www/leondjango; uwsgi --ini uwsgi.ini'

[Install]
WantedBy=multi-user.target
[root@localhost system]# systemctl start leon.service
[root@localhost system]# systemctl status leon.service
● leon.service
   Loaded: loaded (/etc/systemd/system/leon.service; bad; vendor preset: disabled)
   Active: active (running) since Wed 2019-07-03 14:02:31 CST; 7s ago
 Main PID: 7663 (bash)
   CGroup: /system.slice/leon.service
           ├─7663 /usr/bin/bash -c cd /var/www/leondjango; uwsgi --ini uwsgi.ini
           ├─7664 uwsgi --ini uwsgi.ini
           ├─7666 uwsgi --ini uwsgi.ini
           └─7667 uwsgi --ini uwsgi.ini

Jul 03 14:02:31 localhost.localdomain bash[7663]: python threads support enabled
Jul 03 14:02:31 localhost.localdomain bash[7663]: your server socket listen backlog is limited to 100 co...ions
Jul 03 14:02:31 localhost.localdomain bash[7663]: your mercy for graceful operations on workers is 60 seconds
Jul 03 14:02:31 localhost.localdomain bash[7663]: mapped 218760 bytes (213 KB) for 2 cores
Jul 03 14:02:31 localhost.localdomain bash[7663]: *** Operational MODE: preforking ***
Jul 03 14:02:32 localhost.localdomain bash[7663]: WSGI app 0 (mountpoint='') ready in 1 seconds on inter...app)
Jul 03 14:02:32 localhost.localdomain bash[7663]: *** uWSGI is running in multiple interpreter mode ***
Jul 03 14:02:32 localhost.localdomain bash[7663]: spawned uWSGI master process (pid: 7664)
Jul 03 14:02:32 localhost.localdomain bash[7663]: spawned uWSGI worker 1 (pid: 7666, cores: 1)
Jul 03 14:02:32 localhost.localdomain bash[7663]: spawned uWSGI worker 2 (pid: 7667, cores: 1)
Hint: Some lines were ellipsized, use -l to show in full.
[root@localhost system]# systemctl enable leon.service
Created symlink from /etc/systemd/system/multi-user.target.wants/leon.service to /etc/systemd/system/leon.service.
[root@localhost system]# systemctl start nginx
[root@localhost system]# systemctl enable nginx
Created symlink from /etc/systemd/system/multi-user.target.wants/nginx.service to /usr/lib/systemd/system/nginx.service.
[root@localhost system]# systemctl status nginx
● nginx.service - The nginx HTTP and reverse proxy server
   Loaded: loaded (/usr/lib/systemd/system/nginx.service; enabled; vendor preset: disabled)
   Active: active (running) since Wed 2019-07-03 14:04:38 CST; 35s ago
 Main PID: 7693 (nginx)
   CGroup: /system.slice/nginx.service
           ├─7693 nginx: master process /usr/sbin/nginx
           ├─7694 nginx: worker process
           └─7695 nginx: worker process

Jul 03 14:04:38 localhost.localdomain systemd[1]: Starting The nginx HTTP and reverse proxy server...
Jul 03 14:04:38 localhost.localdomain nginx[7688]: nginx: the configuration file /etc/nginx/nginx.conf sy... ok
Jul 03 14:04:38 localhost.localdomain nginx[7688]: nginx: configuration file /etc/nginx/nginx.conf test i...ful
Jul 03 14:04:38 localhost.localdomain systemd[1]: Started The nginx HTTP and reverse proxy server.
Hint: Some lines were ellipsized, use -l to show in full.
[root@localhost system]# firewall-cmd --list-ports
8000/tcp 8080/tcp
[root@localhost system]# firewall-cmd --zone=public --add-port=80/tcp --permanent
success
[root@localhost system]# firewall-cmd --reload
success

关闭SELinux

1、关闭SeLinux:

查看SELinux状态:

1、# /usr/sbin/sestatus -v ##如果SELinux status参数为enabled即为开启状态

SELinux status: enabled

2、getenforce ##也可以用这个命令检查

关闭SELinux:

1、临时关闭(不用重启机器):

# setenforce 0 ##设置SELinux 成为permissive模式
# setenforce 1 设置SELinux 成为enforcing模式

2、修改配置文件需要重启机器:

修改# /etc/selinux/config 文件

将SELINUX=enforcing改为SELINUX=disabled

重启机器即可

普及一下SELinux:

什么是 SELinux(Security-Enhanced Linux) 是美国国家安全局(NAS)对于强制访问控 制的实现,在这种访问控制体系的限制下,进程只能访问那些在他的任务中所需要文件。大部分使用 SELinux 的人使用的都是SELinux就绪的发行版,例如 Fedora、Red Hat Enterprise Linux (RHEL)、Debian 或 Gentoo。它们都是在内核中启用SELinux 的,并且提供一个可定制的安全策略,还提供很多用户层的库和工具,它们都可以使用 SELinux 的功能。

修改favorite和Logo图片

[root@localhost ~]# mkdir /var/www/static/
<link rel="shortcut icon" href="/static/favicon.ico">
<a class="navbar-brand" href="#"><img src="/static/logo.png" height="40" width="auto"></a>

发表回复
